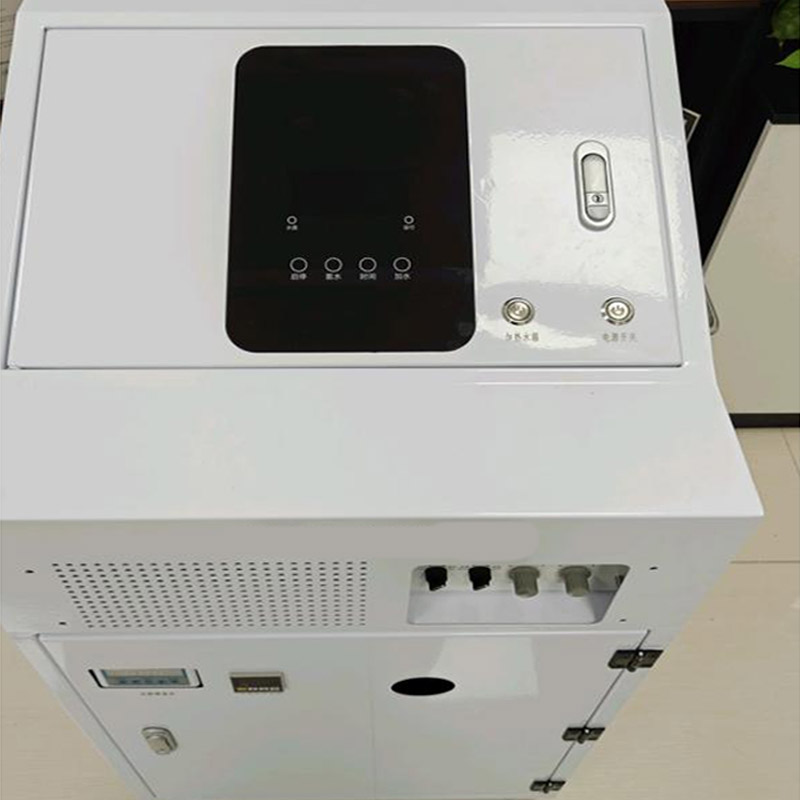

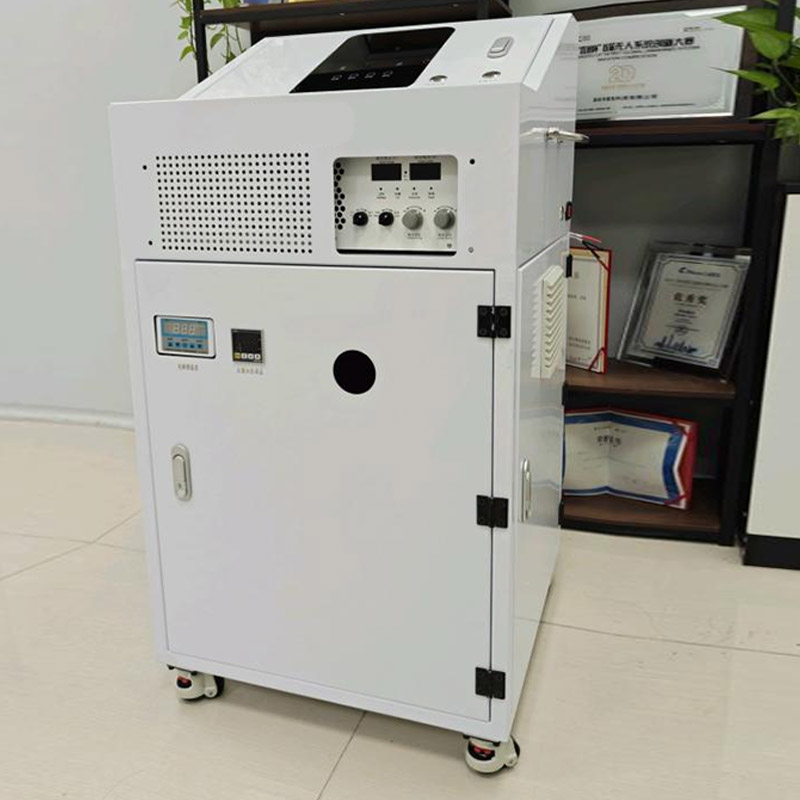

1 Nm³/h Hydrogen Generator

1 Nm³/h Hydrogen Generator Specification Parameters

Category

Component Name

Parameter Description

QTY

Hydrogen Production Core Module

Electrolyzer

1 Nm³/h, Pressure 3MPa, 200A/21-26.4V(Customized)

1

Power Supply

AC380V；200A;0-30V

1

Water Circulation Module

Water Tank

6L(Customized)

1

Heater

175*400mm

1

Connector

Straight 4-part external thread X10*1mm external thread, 8mm quick connector, 8mm high-pressure hose, nut, sealing ring

1

Liquid Level Sensor

2

Ion Conductivity Sensor

TDS

2

Water Feed Pump

24V Water Tank Filling

1

Circulation Pump

24V/30W 1.6~3L/min Electrolyzer Circulation Water

1

Liquid Flow Meter

Customized

1

Purification Column

Customized

1

Heat Sink

Customized

1

Cooling Fam

24V/1.5A 120mm*38mm

2

Electrical Control Module

Digital Thermostat

24V/600W，4mm Probe

1

Hydrogen Generator Control Board

1

Hydrogen Generator Control Board Glass Display

1

Push Button Switch

220V，Heater Power-On

1

Push Button Switch

3~24V，Control Board Power-On

2

AC Socket

220V/10A

1

Hydrogen Gas Path Module

Heat Sink

Customized

1

Cooling Fan

24V/1.5A 120mm*38mm

1

Steam-Water Separator

304Stainless Steel, 3Mpa Filter

1

Solenoid Drain Valve

40kg Solenoid Drain Valve

1

Molecular Sieve

（Unit: Pound）

10

Drying Tank

Stainless Steel，≧3Mpa (Customized)

2

Pressure Gauge Panel

0~4MPA（Middle of Ferrule-Type Three-Way Connector）

1

Pressure Switch

3Mpa，1/4 External Thread（Middle of Ferrule-Type Three-Way Connector）

1

Pressuer Relief Valve

Limit Pressure: 3.Mpa

1

Stainless Stell Connector

Various Φ8 Ferrule-Type Connectors

1

Hydrogen Alarm

1

Chassis

Steel Plate Enclosure

Custom manufactured integrated enclosure, white baking paint

1
