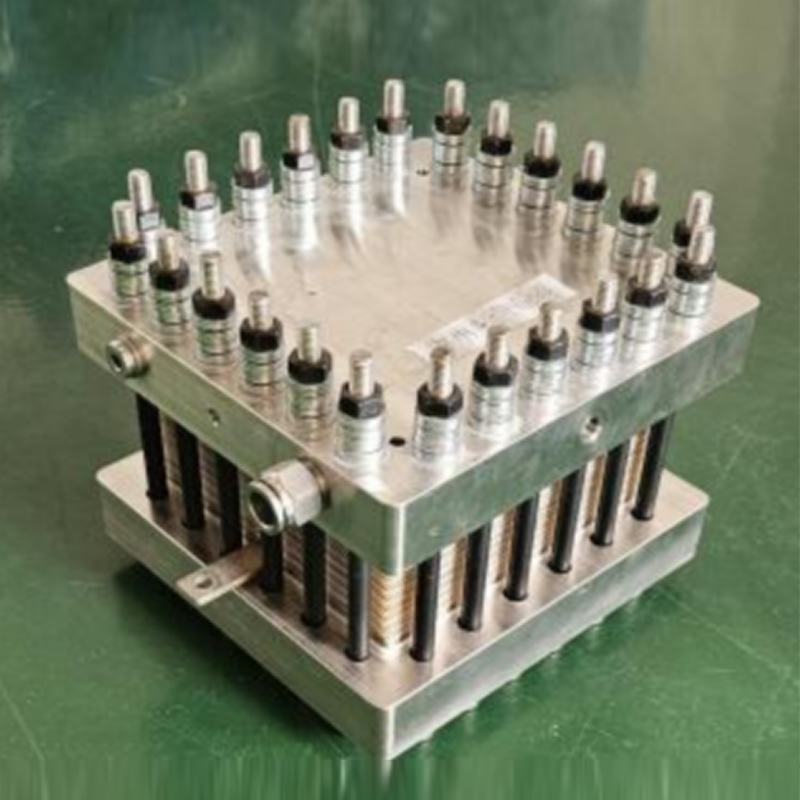

1Nm³/h PEM Water Electrolyzer

Parameter

Unit

Value

Product Model

T-PE-1N0-AL

Electrolyzer Dimensions

mm

262×182×220(Height）

Rated Hydrogen Production

Nm3/ h

1.0

Rated Oxygen Production

Nm3/ h

0.5

Maximum Hydrogen Production

Nm3/ h

1.1

Mass

Kg

25

Rated Working Voltage

V

24.7

Rated Working Current

A

200

Peak Current

A

220

DC Power

kW

70

Effective Area

cm2

100

Hydrogen Purity

≥99 .99%（excluding water vapor）

Hydrogen Production Adjustment

%

20-110

Hydrogen Outlet Pressure

MPa

≤2.0

Hydrogen Outlet Pressure Adjustment Range

MPa

0~2.0

Oxygen Outlet Pressure

/

Atmospheric Pressure

Operating Temperature

℃

60±5

Conductivity

μs/cm

<0 . 2

Water Flow Rate

Nm3/ h

0.4

Rated Operating Condition

1.9V@2000mA/cm2

Electrolyzer Power Consumption

KWh/ Nm3

≤4.5

Water Interface

mm

2×G1/4 (Barbed)

Hydrogen Interface

mm

G1/8 (Ferrule)

Lead Time

Weeks

3
