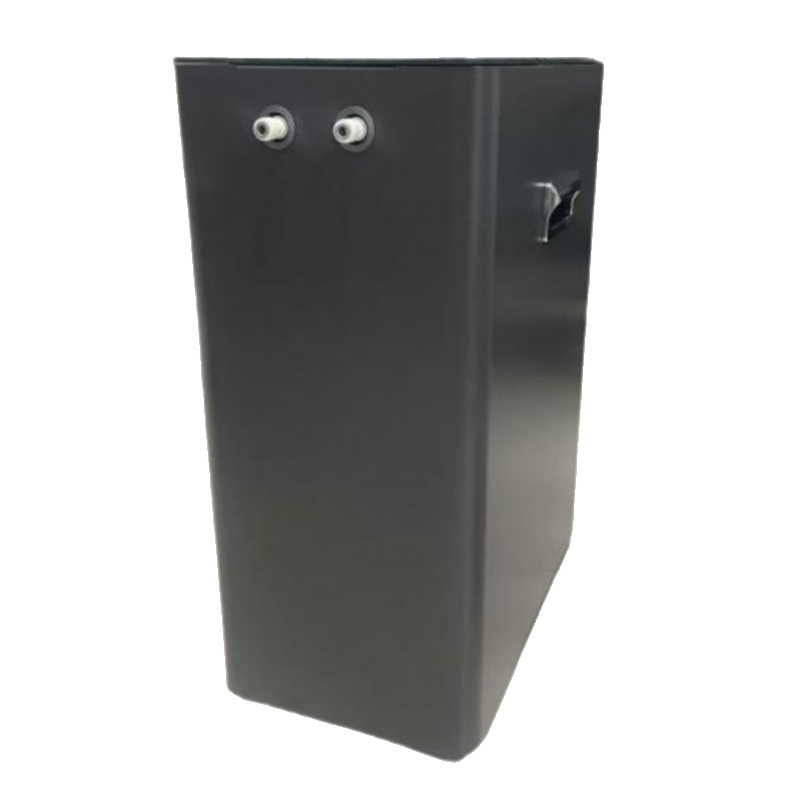

2L/Min Hydrogen Generator

Parameter Category

Functional Module

Performance Parameters

PEM Electrolyzer Tank

High-loading PEM Proton Exchange Membrane Water Electrolyzer

Power Supply

1000-1500W Constant Current Power Supply for Electrolysis

500W Long-Life Switching Power Supply

Water Pump

20,000-Hour Centrifugal Pump

Pressure Sensor

Lifu High-Precision Pressure Sensor

Deionization Tank

Laboratory 18-Megohm Cation-Anion Removal Tank

Water Tank

304 Stainless Steel Material/ Electropolishing/ Passivation/ Epoxy Resin Anti-Corrosion Treatment

Safety Valve

Limit Pressure: 1.2Mpa

Steam-Water Separator

Aluminum Alloy 2Mpa Steam-Water Separator

Drying Tube

Laboratory-Specific Drying Tube

Drawing Design & Simple Enclosure

Drawing Design & Provision of Digital Model,Enclosure Design and Assembly

Filter

Stainless Steel

System Accessories

Control Board, Display, etc.

Sensors

Water Circuit Temperature Sensor, Liquid Level Sensor, Conductivity Sensor

Pressure-Resistant Pipeline

3.5Mpa Burst-Pressure Pipeline

Other Valves

Check Valve, Ball Valve
