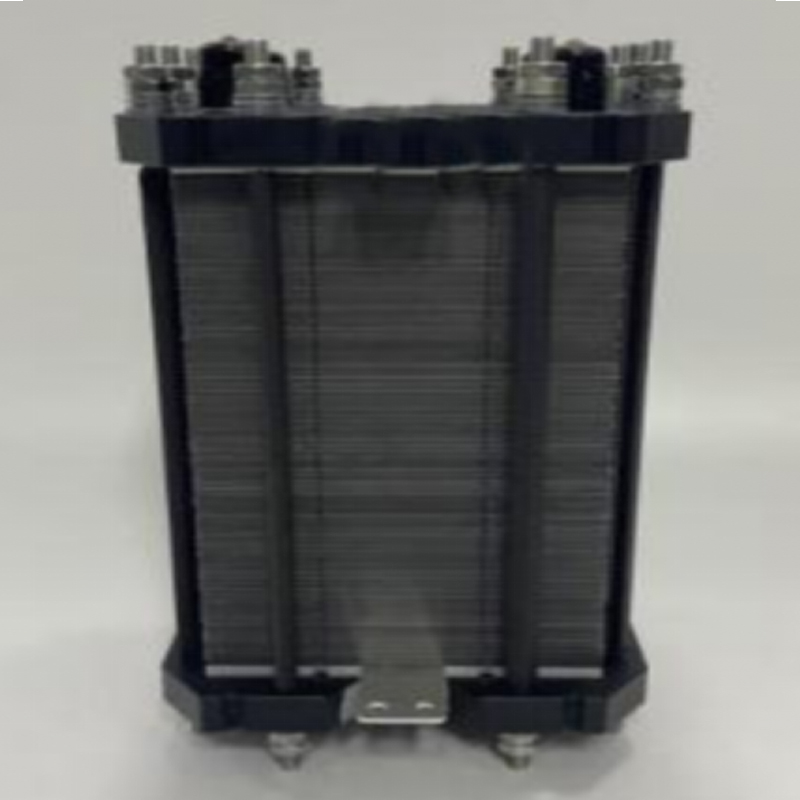

Performance Parameters of 100W Graphite Bipolar Direct Methanol Fuel Cell Stack |
||
|
Module |
Item |
Performance Parameter |
|
Performance |
Rated Voltage |
10V |
|
Rated Current |
10A |
|
|
DC Voltage Range |
8.75~22.5V |
|
|
Operating Temperature |
20~80℃ |
|
|
Fuel |
Methanol Concentration |
2mol/L |
|
Methanol Flow Rate |
135ml/min |
|
|
Theoretical Methanol Consumption at Rated Power |
9.5ml/min |
|
|
Oxidant |
Air |
|
|
Air Pressure |
0. 1MPa |
|
|
Air Flow Rate |
20 L/min |
|
|
Environmental Characteristics |
Operating Ambient Temperature |
-5~45℃ |
|
Operating Ambient Humidity |
10%~95% |
|
|
Storage Ambient Humidity |
-10%~75% |
|
|
Interface Information |
Tab Hole Diameter |
6mm |
|
Gas Connector |
G1/4pip thread to12mmouter diameter straight quick connect |
|
|
Liquid Connector |
G1/4pip thread to12mmouter diameter straight quick connect |
|
|
Material Information |
End Plate Material |
Aluminum Alloy7075 |
|
Bipolar Material |
Graphite |
|
|
Product Dimensions |
180*190*200 |
|
|
Others |
PEM、GDL、Catalyst、etc. |
|
|
Performance Parameters of 200W Graphite Bipolar Direct Methanol Fuel Cell Stack |
||
|
Module |
Item |
Performance Parameter |
|
Performance |
Rated Voltage |
20V |
|
Rated Current |
10A |
|
|
DC Voltage Range |
17.5~45V |
|
|
Operating Temperature |
20~80℃ |
|
|
Fuel |
Methanol Concentration |
2mol/L |
|
Methanol Flow Rate |
270ml/min |
|
|
Theoretical Methanol Consumption at Rated Power |
19ml/min |
|
|
Oxidant |
Air |
|
|
Air Pressure |
0.1MPa |
|
|
Air Flow Rate |
40 L/min |
|
|
Environmental Characteristics |
Operating Ambient Temperature |
-5~45℃ |
|
Operating Ambient Humidity |
10%~95% |
|
|
Storage Ambient Humidity |
-10%~75% |
|
|
Interface Information |
Tab Hole Diameter |
6mm |
|
Gas Connector |
G1/4pip thread to12mmouter diameter straight quick connect |
|
|
Performance Parameters of 300W Graphite Bipolar Direct Methanol Fuel Cell Stack |
||
|
Module |
Item |
Performance Parameter |
|
Performance
|
Rated Voltage |
32V |
|
Rated Current |
9.4A |
|
|
DC Voltage Range |
28-72V |
|
|
Operating Temperature |
20~80℃ |
|
|
Fuel |
Methanol Concentration |
2mol/L |
|
Methanol Flow Rate |
400ml/min |
|
|
Theoretical Methanol Consumption at Rated Power |
28ml/min |
|
|
Oxidant |
Air |
|
|
Air Pressure |
0.1MPa |
|
|
Air Flow Rate |
50 L/min |
|
|
Environmental Characteristics |
Operating Ambient Temperature |
-5~45℃ |
|
Operating Ambient Humidity |
10%~95% |
|
|
Storage Ambient Humidity |
-10%~75% |
|
|
Interface Information |
Tab Hole Diameter |
6mm |
|
Gas Connector |
G1/4pip thread to12mmouter diameter straight quick connect |
|
|
Liquid Connector |
G1/4pip thread to12mmouter diameter straight quick connect |
|
|
Material Information |
End Plate Material |
Aluminum Alloy7075 |
|
Bipolar Material |
Graphite |
|
|
Product Dimensions |
180*190*350 |
|
|
Others |
PEM、GDL、Catalyst、etc. |
|
