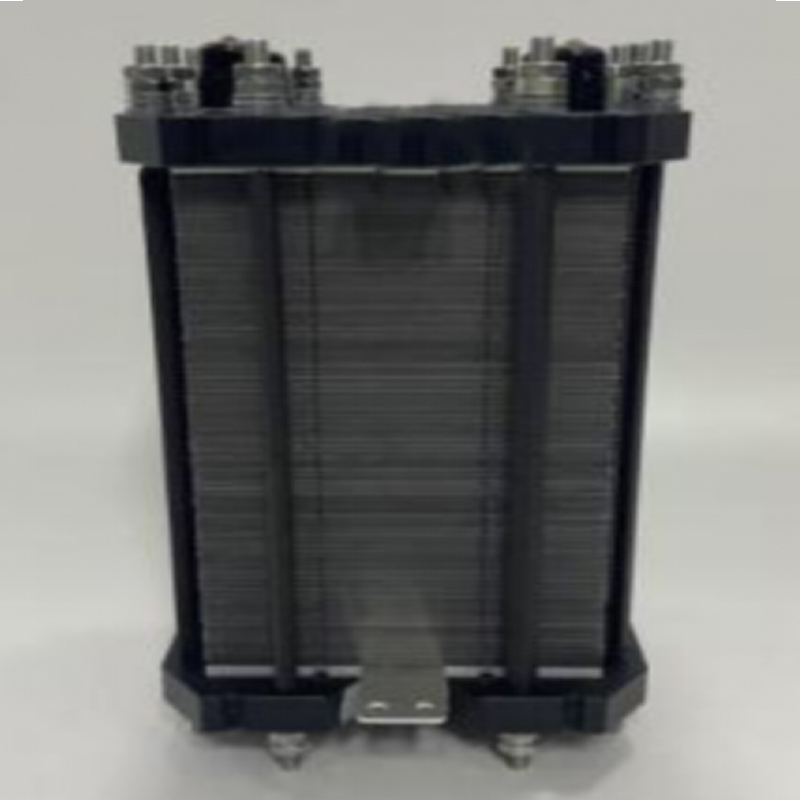

Performance Parameters of 200W Graphite Bipolar Direct Methanol Fuel Cell Stack |
||
|
Module |
Item |
Performance Parameter |
|
Performance |
Rated Voltage |
20V |
|
Rated Current |
10A |
|
|
DC Voltage Range |
17.5~45V |
|
|
Operating Temperature |
20~80℃ |
|
（1）T-ALDM-200 Fuel Cell Stack Parameters
|
Fuel |
Methanol Concentration |
2mol/L |
|
Methanol Flow Rate |
270ml/min |
|
|
Theoretical Methanol Consumption at Rated Power |
19ml/min |
|
|
Oxidant |
Air |
|
|
Air Pressure |
0. 1MPa |
|
|
Air Flow Rate |
40 L/min |
|
|
Environmental Characteristics |
Operating Ambient Temperature |
-5~45℃ |
|
Operating Ambient Humidity |
10%~95% |
|
|
Storage Ambient Humidity |
-10%~75% |
|
|
Interface Information |
Tab Hole Diameter |
6mm |
|
Gas Connector |
G1/4 pip thread to 12mm outer diameter straight quick connect |
|
|
Liquid Connector |
G1/4 pip thread to 12mm outer diameter straight quick connect |
|
|
Material Information |
End Plate Material |
Aluminum Alloy 7075 |
|
Bipolar Material |
Graphite |
|
|
Product Dimensions |
180*190*275 |
|
|
Others |
PEM、GDL 、Catalyst、etc. |
|
