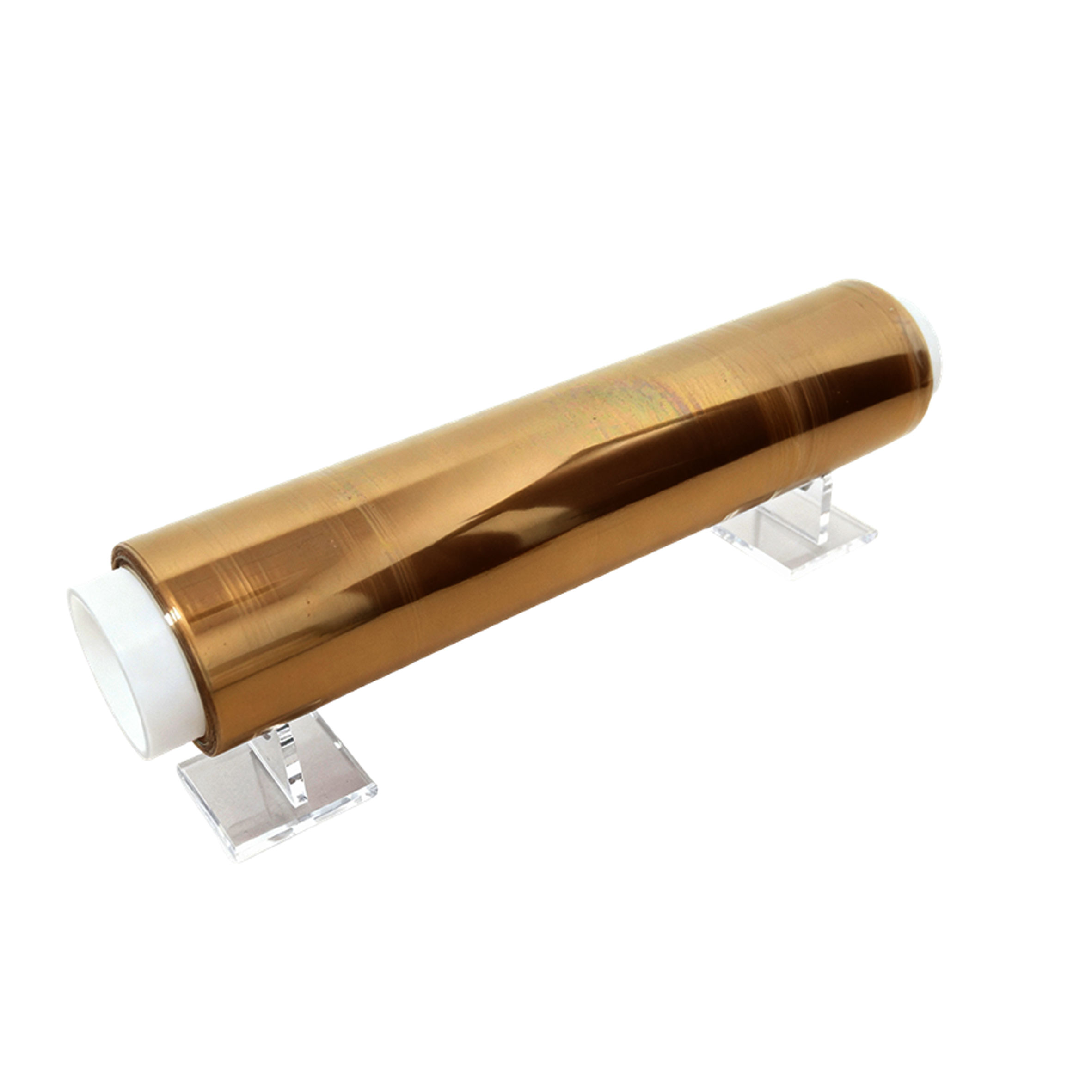

Homogeneous Membrane T-HP40/T-HP60/T-HP80/T-HP100（40/60/80/100μm）

Product Item : T-HP40/T-HP60/T-HP80/T-HP100
Views：2447
Origin：China
Thickness(Customizable)：40/60/80/100μm
Width(Customizable)：20-100cm
Product description：A homogeneous membrane offering classic balance and general-purpose stability.
Inquiry

Anion Exchange Homogeneous Membrane
Part Number	T-HP100	T-HP80	T-HP60	T-HP40
Thickness(um）（Customizable)	100	80	60	40
Width（cm）(Customizable)	20-100	20-100	20-100	20-100
Ion Exchange Capacity (IEC) (mmol/g)	2.3	2.3	2.3	2.3
80℃Swelling Ratio at 80°C (%)	≤ 8.0	≤ 8.0	≤ 8.0	≤10.0
Water Uptake at 80°C (%)	≥ 55.0	≥ 55.0	≥ 55.0	≥ 60.0
Tensile Strength (MPa)	≥ 50	≥ 50	≥ 50	≥ 35
Elongation at Break (%)	≥ 30	≥ 30	≥ 30	≥ 30
Ionic Conductivity at 25°C (mS/cm)	> 40	> 40	> 40	> 40
Ionic Conductivity at 80°C (mS/cm)	≥ 120	≥ 120	≥ 120	≥ 120
Color	Light brown transparent
Counter Ion	Chloride(Cl⁻)
Dimension(cm)	Customizable
Application	1-Conventional water treatment, water softening and desalination 2- Diffusion dialysis (acid recovery, alkali recovery (pickling waste liquid, chemical fiber industry) 3- Laboratory /small-scale electrodialysis systems 4- Conventional electrolysis, electrosynthesis and ion separation
