Bicarbonate-form membrnae T-HPH20/T-HPH40/T-HPH60/T-HPH80(20/40/60/80um）

Product Item : T-HPH20/T-HPH40/T-HPH60/T-HPH80
Views：2451
Origin:China
Thickness(Customizable)：20/40/60/80μm
Width(Customizable)：20-100cm
Product description：A bicarbonate membrane that prevents alkali formation, suitable for specialized applications.
Inquiry

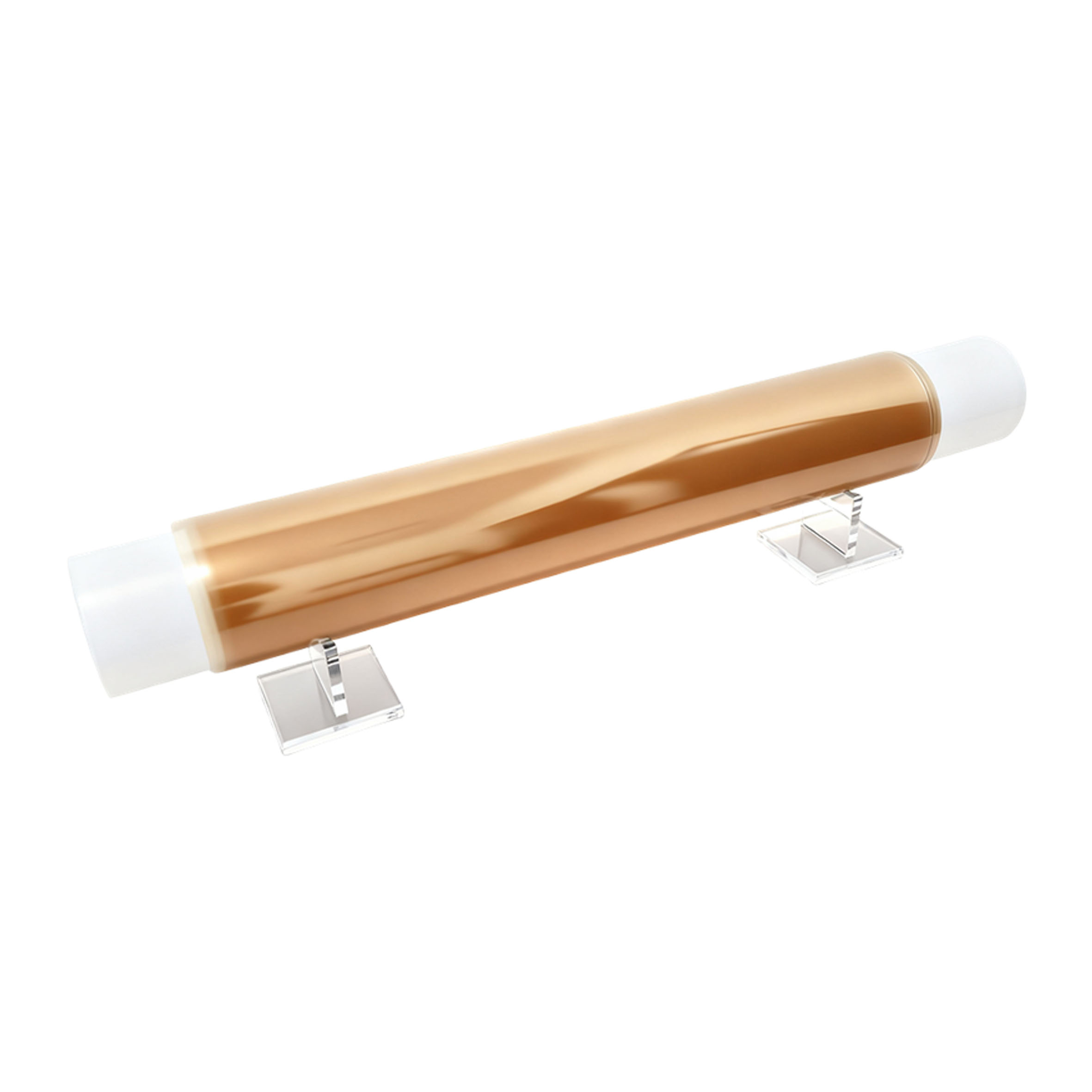

Bicarbonate-form Anion Exchange Membrane
Part Number	T-HPH20	T-HPH40	T-HPH60	T-HPH80
Thickness(um）（Customizable)	20	40	60	80
Width（cm）(Customizable)	20-100	20-100	20-100	20-100
Ion Exchange Capacity (IEC) (mmol/g)	2.3	2.3	2.3	2.3
80℃Swelling Ratio at 80°C (%)	≤ 8.0	≤ 8.0	≤ 8.0	≤ 8.0
Water Uptake at 80°C (%)	≥ 55.0	≥ 55.0	≥ 55.0	≥ 55.0
Tensile Strength (MPa)	≥ 50	≥ 50	≥ 50	≥ 50
Elongation at Break (%)	≥ 30	≥ 30	≥ 30	≥ 30
Ionic Conductivity at 25°C (mS/cm)	≥ 40.0	≥ 40.0	≥ 40.0	≥ 40.0
Ionic Conductivity at 80°C (mS/cm)	≥ 120	≥ 120	≥ 120	≥ 120
Color	Light brown transparent
Counter Ion	Hydrogen Carbonate (HCO₃⁻)
Dimension(cm)	Customizable
Application	1-Anion exchange membrane water electrolysis for hydrogen production (AEMWE) 2-Bipolar membrane electrolysis (BPM) coupled with carbon capture 3-Flow batteries /energy storage: compatible with bicarbonate-based electrolyte systems 4-Ion exchange and water treatment 5-CO₂ separation and capture
