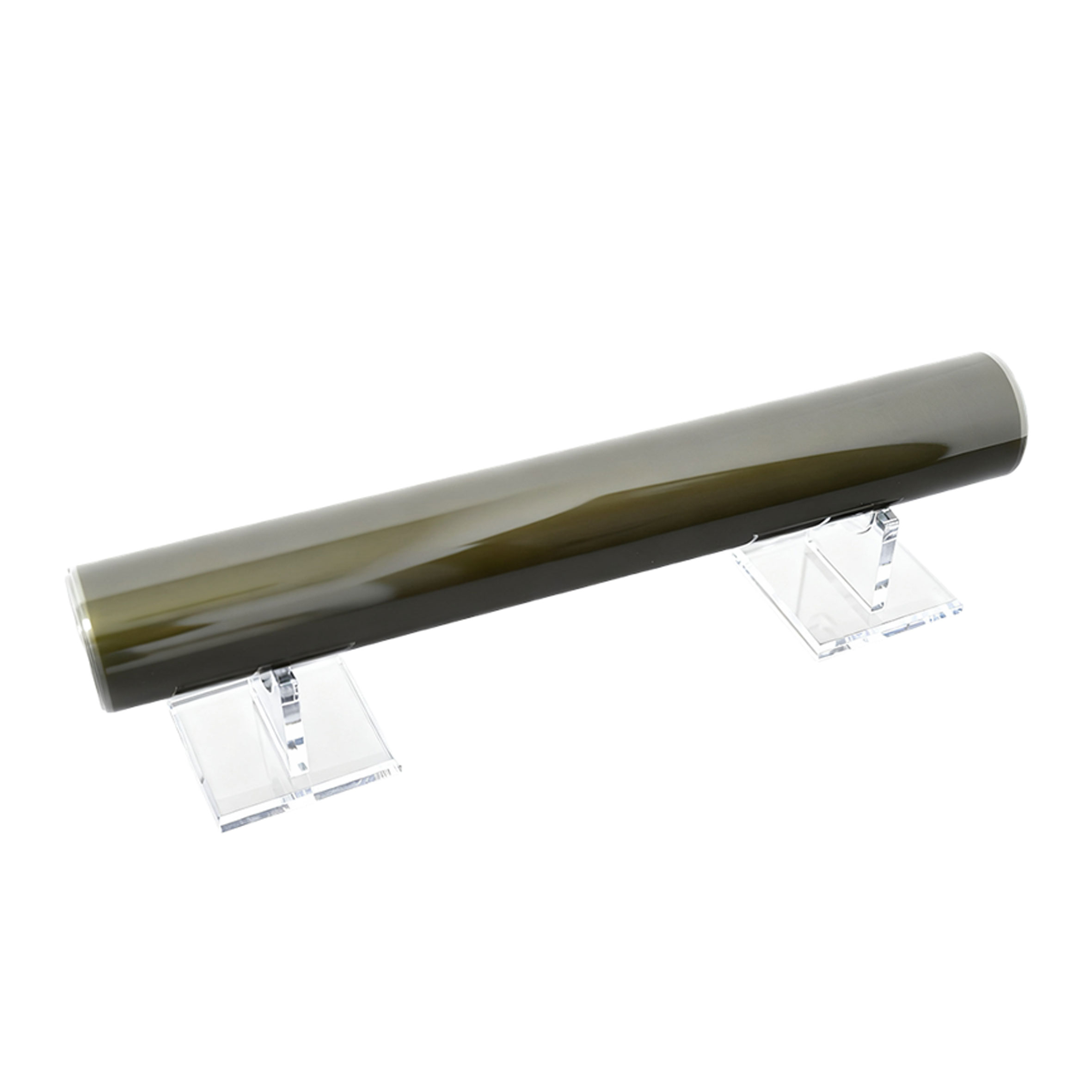

Hydrogen Permeation Barrier Membrane T-DHP60/T-DHP80/T-DHP100 （60/80/100μm）

Product Item : T-DHP60/T-DHP80/T-DHP100
Views：2436
Origin:China
Thickness(Customizable)：60/80/100μm
Width(Customizable)：20-100cm
Product description：A safety-focused membrane featuring active hydrogen removal.
Inquiry

Anion Exchange Hydrogen Permeation Barrier Membrane
Part Number	T-DHP100	T-DHP80	T-DHP60
Thickness(um）（Customizable)	100	80	60
Width（cm）(Customizable)	20-100	20-100	20-100
Ion Exchange Capacity (IEC) (mmol/g)	2.3	2.3	2.3
80℃Swelling Ratio at 80°C (%)	≤ 8.0	≤ 8.0	≤ 8.0
Water Uptake at 80°C (%)	≥ 55.0	≥ 55.0	≥ 55.0
Tensile Strength (MPa)	≥ 50	≥ 50	≥ 50
Elongation at Break (%)	≥ 30	≥ 30	≥ 30
Ionic Conductivity at 25°C (mS/cm)	> 40	> 40	> 40
Ionic Conductivity at 80°C (mS/cm)	≥ 120	≥ 120	≥ 120
Color	Black transparent
Counter Ion	Chloride (Cl⁻)
Dimension(cm)	Customizable
Application	1-Anion exchange membrane water electrolysis for hydrogen production (AEMWE) 2-Anion exchange membrane fuel cells (AEMFC) 3-Hydrogen safety and separation 4-Carbon dioxide electroreduction (CO₂RR)
