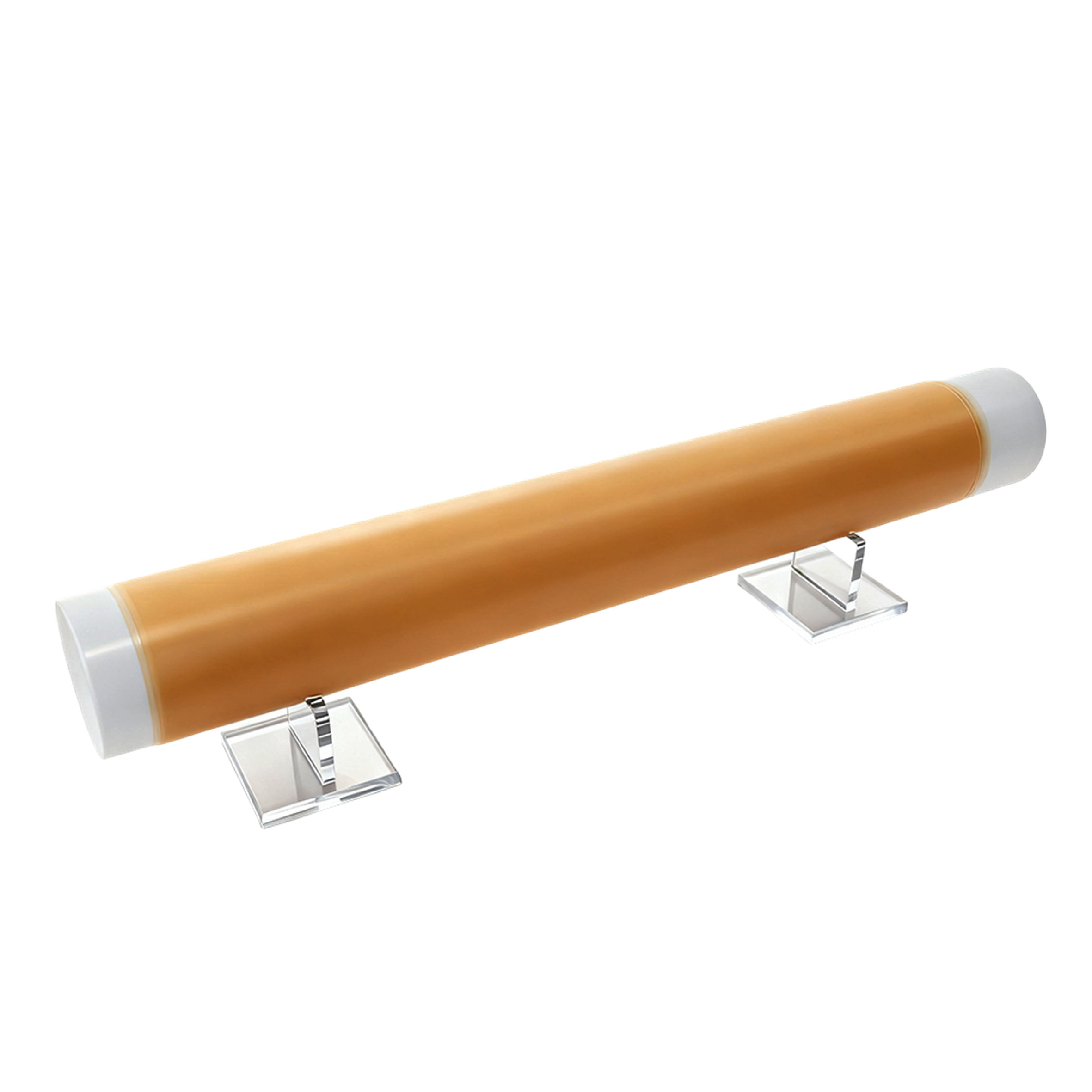

Reinforced Membrane T-SHQ80/T-SHQ100/T-SHQ120 （80/100/120μm）

Product Item : Reinforced Membrane T-SHQ80/T-SHQ100/T-SHQ120 （80/
Views：2421
Origin:China
Thickness(Customizable)：80/100/120μm
Width(Customizable)：20-55cm
Product description：An enhanced membrane designed for high strength and superior dimensional stability.
Inquiry

Reinforced Anion Exchange Membrane
Part Number	T-SHQ120	T-SHQ100	T-SHQ80
Thickness(um）（Customizable)	120	100	80
Width（cm）(Customizable)	20-55	20-55	20-55
Ion Exchange Capacity (IEC) (mmol/g)	2.2	2.2	2.2
80℃Swelling Ratio at 80°C (%)	≤ 2.0	≤ 2.0	≤ 2.0
Water Uptake at 80°C (%)	≥ 40.0	≥ 40.0	≥ 40.0
Tensile Strength (MPa)	≥ 60	≥ 60	≥ 60
Elongation at Break (%)	≥ 30	≥ 30	≥ 30
Ionic Conductivity at 25°C (mS/cm)	> 35	> 35	> 35
Ionic Conductivity at 80°C (mS/cm)	≥ 100	≥ 100	≥ 100
Color	Light brown transparent
Counter Ion	Chloride (Cl⁻)
Dimension(cm)	Customizable
Application	1- Large-scale industrial electrodialysis (ED/EDR) 2-Bipolar membrane electrodialysis (BMED) 3Anion exchange membrane fuel cells (AEMWE / AEMFC) 4- High-concentration acid and alkali environments, severe corrosion conditions 5- Flow battery energy storage (all-vanadium flow batteries, iron-chromium flow batteries)
