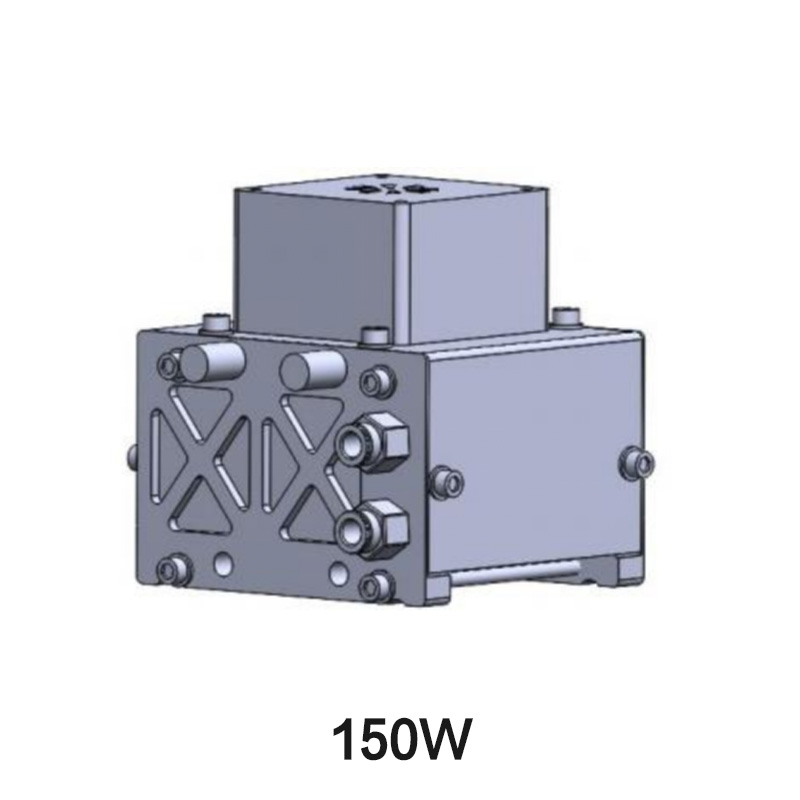

Performance parameters of 150W air-cooled graphite bipolar hydrogen fuel cell stack |
||
|
Module |
Item |
Performance Parameter |
|
Performance |
Rated Voltage |
9V |
|
Rated Current |
16.7A |
|
|
Start-up |
0~45℃ |
|
|
DC Voltage Range |
7.5~ 15V |
|
|
Operating Temperature |
Approximately50℃ |
|
|
Efficiency |
≥45%（Under Ideal Conditions） |
|
|
Fuel |
Hydrogen Pressure |
0.035~0.050MPa |
|
Hydrogen Purity |
≥99.99%（CO≤1PPM） |
|
|
Theoretical Hydrogen Consumption at Rated Power |
2.12 L/min |
|
|
Oxidant |
Air |
|
|
Air Pressure |
Atmospheric Pressure |
|
|
Theoretical Air Consumption at Rated Power |
84.03 L/min |
|
|
Environmental Characteristics |
Operating Ambient Temperature |
-5~45℃ |
|
Operating Ambient Humidity |
10%~95% |
|
|
Storage Ambient Humidity |
-10%~75% |
|
|
Interface Information |
Tab Hole Diameter |
6mm |
|
Inlet Pipe Connector |
G1/8 Pipe Thread to Outer Diameter 6mm Straight Quick Plug |
|
|
Outlet Pipe Connector |
G1/8 Pipe Thread to Outer Diameter 6mm Straight Quick Plug |
|
|
Material Information |
End Plate Material |
Aluminum Alloy 7075 |
|
Bipolar Material |
Graphite |
|
|
Others |
PEM、GDL、Pt/C Catalyst,etc. |
|
|
Others |
Noise |
≤40dB |
|
Product Dimensions |
110*103*75（mm） |
|
|
Accessories |
Fan、Interface |
|
|
Product Life Cycle |
Approx. 2000h |
|
|
Performance parameters of 250W air-cooled graphite bipolar hydrogen fuel cell stack |
||
|
Module |
Item |
Performance Parameter |
|
Performance |
Rated Voltage |
15V |
|
Rated Current |
16.7A |
|
|
Start-up |
0~45℃ |
|
|
DC Voltage Range |
12.5~ 25V |
|
|
Operating Temperature |
Approximately50℃ |
|
|
Efficiency |
≥45%（Under Ideal Conditions） |
|
|
Fuel |
Hydrogen Pressure |
0.035~0.050MPa |
|
Hydrogen Purity |
≥99.99%（CO≤1PPM） |
|
|
Theoretical Hydrogen Consumption at Rated Power |
3.53 L/min |
|
|
Oxidant |
Air |
|
|
Air Pressure |
Atmospheric Pressure |
|
|
Theoretical Air Consumption at Rated Power |
140.03 L/min |
|
|
Environmental Characteristics |
Operating Ambient Temperature-5~45℃ |
|
|
Operating Ambient Humidity |
10%~95% |
|
|
Storage Ambient Humidity |
-10%~75% |
|
|
Interface Information |
Tab Hole Diameter |
6mm |
|
Inlet Pipe Connector |
G1/8 Pipe Thread to Outer Diameter6mm Straight Quick Plug |
|
|
Outlet Pipe Connector |
G1/8 Pipe Thread to Outer Diameter6mmStraight Quick Plug |
|
|
Material Information |
End Plate Material |
Aluminum Alloy 7075 |
|
Bipolar Material |
Graphite |
|
|
Others |
PEM、GDL 、Pt/C Catalyst,etc. |
|
