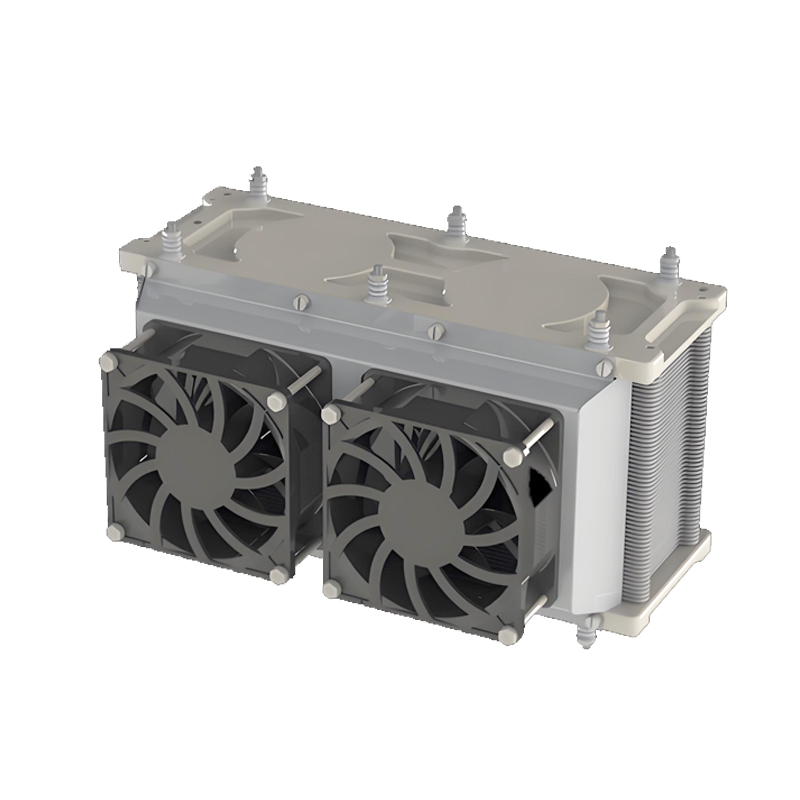

1000W Air-cooled Metal Plate Hydrogen Fuel Cell Stack Performance Parameters |
||
|
Module |
Item |
Performance Parameters |
|
Performance |
Rated Voltage |
16.2V |
|
Rated Current |
64A |
|
|
Starting Temperature |
0~45℃ |
|
|
DC voltage range |
13.5~27V |
|
|
Operating temperature |
Approximately 50℃ |
|
|
Efficiency |
≥45%(under ideal conditions) |
|
|
Fuel |
Hydrogen pressure |
0.035~0.060MPa |
|
Hydrogen Purity |
≥99.99%（CO≤1PPM） |
|
|
Theoretical Hydrogen Consumption at Rated Power |
12.17 L/min |
|
|
Hydrogen Flow Rate at Rated Power |
18.26L/min |
|
|
Oxidant/ Coolant |
Air |
|
|
Air Pressure |
Atmospheric Pressure |
|
|
Rated Power Theoretical Air Consumption |
579.57L/min |
|
|
Environmental Characteristics |
Operating Environment Temperature |
-5~45℃ |
|
Operating Environment Humidity |
10%~95% |
|
|
Storage Environment Humidity |
-10%~75% |
|
1300W Air-cooled Metal Plate Hydrogen Fuel Cell Stack Performance Parameters
Module
Item
Performance Parameters
Performance
Rated Voltage
21V
Rated Current
64A
Starting Temperature
0~45℃
DC voltage range
17.5~35V
Operating temperature
Approximately 50℃
Efficiency
≥45%(under ideal conditions)
Fuel
Hydrogen pressure
0.035~0.060MPa
Hydrogen Purity
≥99.99%（CO≤1PPM）
Theoretical Hydrogen Consumption at Rated Power
15.78 L/min
Hydrogen Flow Rate at Rated Power
23.67 L/min
Oxidant/ Coolant
Air
Air Pressure
Atmospheric Pressure
Rated Power Theoretical Air Consumption
751.30L/min
Environmental Characteristics
Operating Environment Temperature
-5~45℃
Operating Environment Humidity
10%~95%
Storage Environment Humidity
-10%~75%
1500W Air-cooled Metal Plate Hydrogen Fuel Cell Stack Performance Parameters
Module
Item
Performance Parameters
Performance
Rated Voltage
24V
Rated Current
64A
Starting Temperature
0~45℃
DC voltage range
20~40V
Operating temperature
Approximately 50℃
Efficiency
≥45%(under ideal conditions)
Fuel
Hydrogen pressure
0.035~0.060MPa
Hydrogen Purity
≥99.99%（CO≤1PPM）
Theoretical Hydrogen Consumption at Rated Power
18.03 L/min
Hydrogen Flow Rate at Rated Power
27.05 L/min
Oxidant/ Coolant
Air
Air Pressure
Atmospheric Pressure
Rated Power Theoretical Air Consumption
858.63 L/min
Environmental Characteristics
Operating Environment Temperature
-5~45℃
Operating Environment Humidity
10%~95%
Storage Environment Humidity
-10%~75%
2000W Air-cooled Metal Plate Hydrogen Fuel Cell Stack Performance Parameters
Module
Item
Performance Parameters
Performance
Rated Voltage
32.4 V
Rated Current
64A
Starting Temperature
0~45℃
DC voltage range
27~54 V
Operating temperature
Approximately 50℃
Efficiency
≥45%(under ideal conditions)
Fuel
Hydrogen pressure
0.035~0.060MPa
Hydrogen Purity
≥99.99%（CO≤1PPM）
Theoretical Hydrogen Consumption at Rated Power
24.34 L/min
Hydrogen Flow Rate at Rated Power
36.51 L/min
Oxidant/ Coolant
Air
Air Pressure
Atmospheric Pressure
Rated Power Theoretical Air Consumption
1159.15 L/min
Environmental Characteristics
Operating Environment Temperature
-5~45℃
Operating Environment Humidity
10%~95%
Storage Environment Humidity
-10%~75%
