AEM’s CCM for Electrolyzer

Views：5285
Origin:China
Catalysts:2-Ni-based materials (PGM-free on both sides)
Size:1-Whole 88*100mm Active Area:52*52mm
Product description：Thinkru AEM CCM is a high-performance 3-in-1 catalyst-coated membrane engineered specifically for Anion Exchange Membrane Water Electrolysis (AEMWE) and Anion Exchange Membrane Fuel Cells (AEMFC). Co
Inquiry

Key Features

High-Stability AEM Membrane Robust aromatic polymer backbone with strong alkaline resistance (0.1–1 M KOH), low swelling, and reliable performance at up to 60°C.

High Conductivity & Low Impedance High hydroxide ion conductivity for efficient reaction and reduced cell voltage loss.

Precision Catalyst Coating Uniform, tightly bonded catalyst layers on both sides, with controllable noble metal loading to lower cost while maintaining high performance.

Low Gas Crossover Dense membrane structure minimizes H₂/O₂ permeation, improving safety and energy efficiency.

High Mechanical Strength Excellent tensile strength and flex resistance, suitable for dynamic stack operating conditions.

Customizable & Scalable Available in standard and custom sizes, with consistent quality from lab samples to mass production.

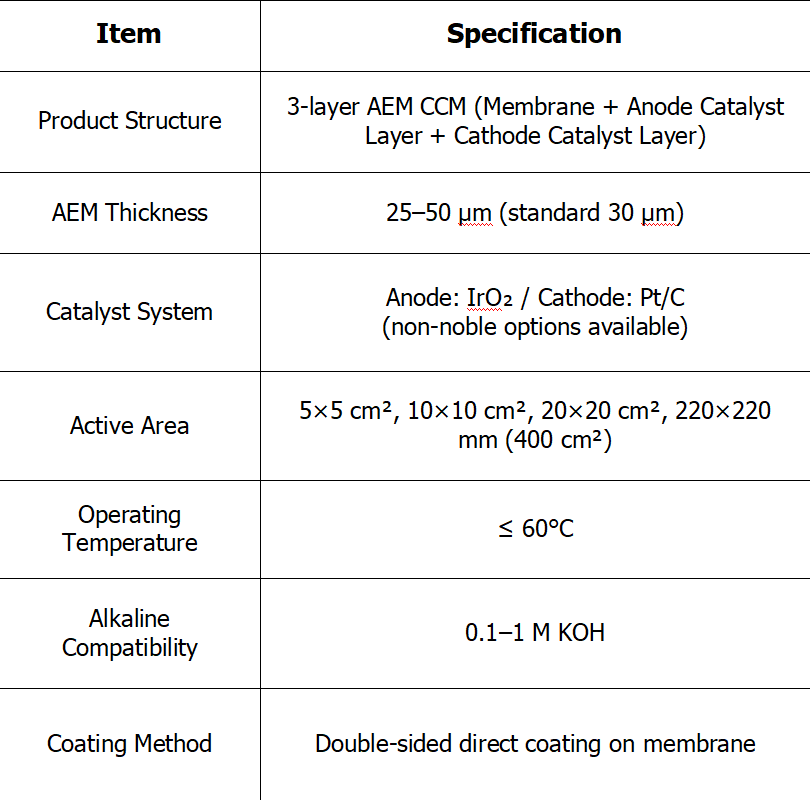

Typical Technical Specifications
